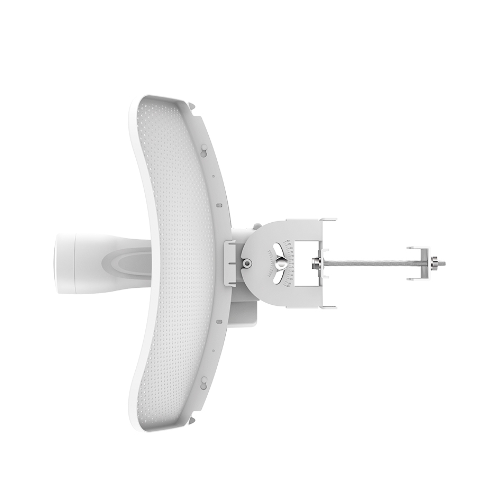

(CPE605) CPE de Exterior de 5 GHz a 150Mbps, Antena direccional de 23dBi, potencia de 23 dBm, PoE pasivo
Original price was: $3,025.13.$1,680.63Current price is: $1,680.63.
224 disponibles
Hasta 12 pagos sin tarjeta con Mercado Pago.
Saber más
Compra con Mercado Pago sin tarjeta y paga mes a mes
1
2
3
Crédito sujeto a aprobación.
¿Tienes dudas? Consulta nuestra Ayuda.
Modelo: CPE605
Marca: TP-LINK
CARACTERÍSTICAS DE HARDWARE |
|
|---|---|
|
Procesador |
Qualcomm 560MHz CPU, MIPS 74Kc |
| Memoria | 64MB DDR2 RAM,8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button |
| Fuente de Alimentación | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
| Dimensiones (W X D X H) | 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.) |
| Ganancia de Antena | 23dBi |
| Cobertura de Antena | 7°(Azimuth), 10°(Elevation) |
| Protección | 15KV ESD Protection 6KV Lightning Protection |
| Cercado | Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design |
CARACTERÍSTICAS INALÁMBRICAS |
|
|---|---|
| Estándares Inalámbricos | IEEE 802.11a/n |
| Protocolo Propietario | TDMA Mode (with Pharos MAXtream enabled) |
| Velocidades Inalámbricas Up to | 150Mbps (40MHz,Dynamic) 72.2Mbps (20MHz,Dynamic) 36.1Mbps (10MHz,Dynamic) 18.05Mbps (5MHz,Dynamic) |
| Frecuencia | 5.15~5.85GHz |
| Potencia de Transmision | Max. 23dBm (Adjustable power by 1dBm) |
CARACTERÍSTICAS DE SOFTWARE |
|
|---|---|
| IPv6 | Yes |
| Configuracion De Red | WAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding |
| Configuraciones Inalámbricas | Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |
| Administración | Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server |
| Herramientas de sistema | Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute |
| Optimizaciones a Nivel de Sistema | Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog |
POE ADAPTER FEATURES |
|
|---|---|
| Dimensions(W x D x H) | 85.8×43.9×29.7 mm |
| Interfaces | 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) |
| Botón | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Eficiencia | >84.29% |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
OTROS |
|
|---|---|
| Certificacion | CE, FCC, RoHS, IP65 |
| Contenidos del Paquete | Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
| Requisitos del Sistema | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Ambiente | Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
Información completa en la hoja de especificaciones siguiente:
https://ftp3.syscom.mx/usuarios/ftp/2020/06/22/2a2bb/CPE%20series-Datasheet.pdf
